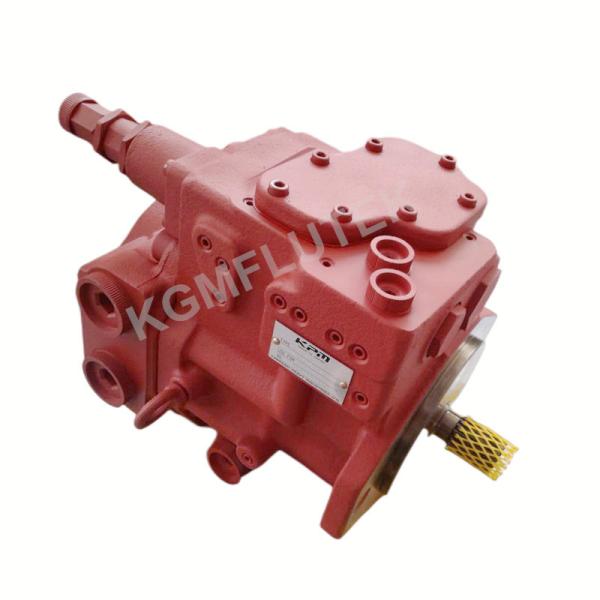

Genuine KPM Main Pump K3SP36C-ICBR-9002 Hydraulic Pump For T175
K3SP36C Hydraulic Pump Spare Parts
We offer hydraulic pump spare parts for K3SP36C. Spare parts include: Drive Shaft, Support, Swash Plate, Set Plate, Ball Guide, Coil spring, Piston Shoe, Cylinder Block, Valve Plate and other parts. Yunki is your aftermarket solutions partner for Kawasaki replacement piston pump parts. Precision piston pump parts can totally interchange with original Kawasaki, same specification and duration.
| Item No. | Name & Description | QTY (pcs) |
| 1 | K3SP36C DRIVE SHAFT | 2 |
| 2 | K3SP36C BALL OF SWASH PLATE | 2 |
| 3 | K3SP36C SUPPORT | 1 |
| 4 | K3SP36C SWASH PLATE | 1 |
| 5 | K3SP36C TILTING PIN | 1 |
| 6 | K3SP36C SERVO PISTON | 1 |
| 7 | K3SP36C PISTON SHOE | 10 |
| 8 | K3SP36C SET PLATE | 1 |
| 9 | K3SP36C BALL GUIDE | 1 |
| 10 | K3SP36C COIL SPRING | 10 |
| 11 | K3SP36C CYLINDER BLOCK | 1 |
| 12 | K3SP36C VALVE PLATE | 1 |
Features
The K3SP36C swash plate variable piston pump for open hydraulic system, the total power control mode, used in construction machinery, especially suitable for 6 to 8 tons excavators. The piston pump has high pressure, compact design, light weight, wide range of applications, convenient installation, low noise and easy maintenance features.
| Model | K3SP36C |
| Displacement | 36x2 mL/r |
| Rotation(viewed from shaft end) | R:clockwise L:counter clockwise |
| Rated speed | 2000 r/min |
| Max. speed | 2300 r/min |
| Inlet pressure | 0.05~0.2 MPa |
| Rated pressure | 28 MPa |
| Max. pressure | 30 MPa |
| Recommend oil | L-HM46(summer) L-HM32(winter) |
| Housing pressure | ≤0.15 MPa |
| Gear pump displ. | 9 mL/r |
| Max. working pressure for gear pump | 5 MPa |
More Models for Hydraulic Main Pump
| Pump Model | Machine Model | Pump Model | Machine Model |
| K3V63DT | HD550V-2 SK100-2 SK100-3 SK120 SK120-2/3 E311 E312 DH130 R130W-5 JCB130 | A10VD43 | EX60-2 |
| K3V63DTP100R-0E01 | SK115 | A10VD43 | SK60-1 |
| K7V63DTP174R | SK135SR-2 | A10VD43 | E307 |
| K3V112DT | SK200-6 | A10VD43 | SH60 |
| K3V112DT | SK200-6E | A10VD43SR1RS5-990-0 | SK60 |
| K3V112DTP17LR-9TDL | SK200-6 | A10VD43SR1RS5-993-4 | E70B |
| K3V112DT | EC210B | J3SP36 1DAR-9003-A | E70B |
| K3V112DTP1K9R YTOK-HV | SK200-8 SK250-8 | VRD63-5VNG-10 | E120B |
| K3V112DTP1K9R-YT2K-V | SK210-9 | K3V63DT-9N2D | E312B |
| K3V112DTP-16AR-9N49-1Z | SH240A3 | A8VO107 | E320B |
| K3V140DT | SK300-2 DH300LC-5
DH280LC-3 R290LC-3
R300LC-5 EC290BL | A8V0107L AIHI/60RI
A8VO107L A0H2 | E325L |
| K3V140DT | EC290B | A8VO160 | E330 |
| K3V180DT | DH320LC-3 HD1250-5
HD1250-7 SK400-2 | A8VO160L | E330B |
| K3V180DT | EC360BLC | A8V0200LA1KH1/63R1
A8VO200 216-0038 | E330C |
| K3V180DTH | EC460B | A8VO200LA1KH1-63R1 | E345 |
| K5V200DTH1X5R-9N1H-V | SY335 | HPV118 | ZX200-3 |
| K5V200DPH101P | Zaxis 500 LCH | HPV145H-28A | ZX330-3 |
| K5V200DTH10JR-9CO2-VT | R450LC-7, R450-7 | HPV145 | ZX350H-3 |
| K5V200DPH1DBR-ZS24-V, H5V200DPH1DBR-ZS24-V | JS330 | HPV116 | EX200-1 |
| K5V140DT | DH300-7, R305-7 | HPV091DW | EX200-2 |
| K5V140DTP109R-YT2K-V | SK330-8 SK350-8 | HPV091EW | EX200-3 |
| K5V80DTP-173R-9KOE1 -4X 298944 | ZX130 | HPV102 | EX200-5 |
| K5V160DTP1F9R-9Y04-HV | SH350-3 | HPV145 | EX300-1 |
| K3V180DTH | EX400-3 | A7VO250 | EX400-1 |
| K3V280S | EX-1200-6 | HPV132 | pc400-6 |
| K3SP36B | SK80SR | HPV160 | PC450-7 |
| K7SP36/K7V28 | ZX70-3 | HPV90 | PC200-5 |
| HPV55 | PC100-3 | HPV95 | PC200-6 |
| HPV90 | PC200-3 | HPV95 | PC200-6 |
We offer wide range of hydraulic pumps that can suit to excavator such as Komatsu, Caterpillar, Hitachi, Kobelco, Mitsubishi, Hyundai, Volvo.
All of our Hydraulic Pumps are packed well in wooden case.
